Item specifics
  • Item Type: Window Lever & Window Winding Handles
  • Toyota Model: RAV 4

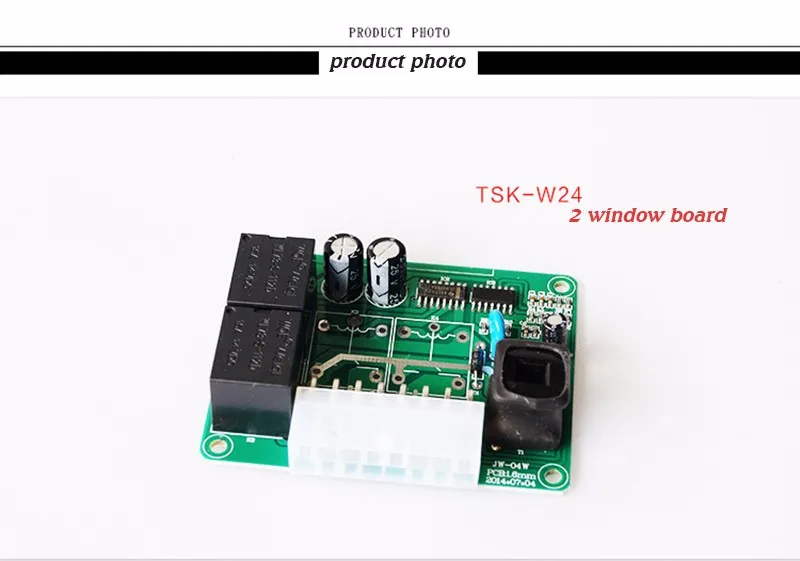

  • Model Name: TSK-W24
  • Item Width: 10
  • For Vehicle Brands/Model: Toyota
  • Material Type: plastic
  • RAV 4-Year: 2004,2005
  • Item Height: 5
  • Year: 2015
  • Special Features: Universal car window closers
  • Item Length: 15
  • Item Weight: 0.3
Product Description

Universal car window closers and the original car anti-theft automatic matching four or two windows for 12V car general-purpose

1

Two or four windows optional This product is suitable for the original car electric lift windows models, according to the actual needs of optional two or four windows.
The windows automatically turn off
This product can be used with the anti-theft device, anti-theft remote control anti-theft lock the door, the product can automatically turn off the windows.
You can choose positive and negative hair function
This product can control the electrical part of the original car in accordance with the central control lock or anti-theft control options to choose positive and negative hair function. Line group is connected to yellow or anti-theft lock in the central locking window signal, orange window signal is positive or l. Depending on the anti-theft alarm or central locking window signal is positive or negative signal to select one of the line
Applicable to any model
The implementation of this product does not have the power window main circuit positive / negative control selection function, through the external 16P line in the red and black lines to control the various windows of the positive / negative control and loop control circuit, and truly meet the purpose of any vehicle .

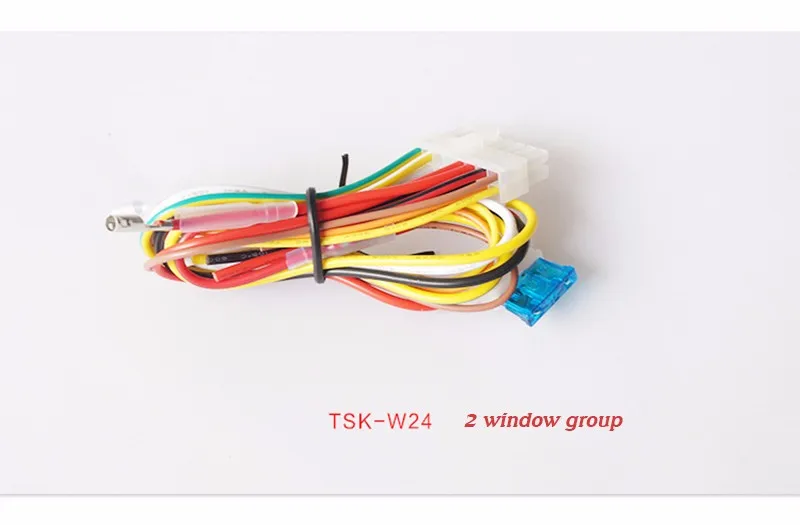

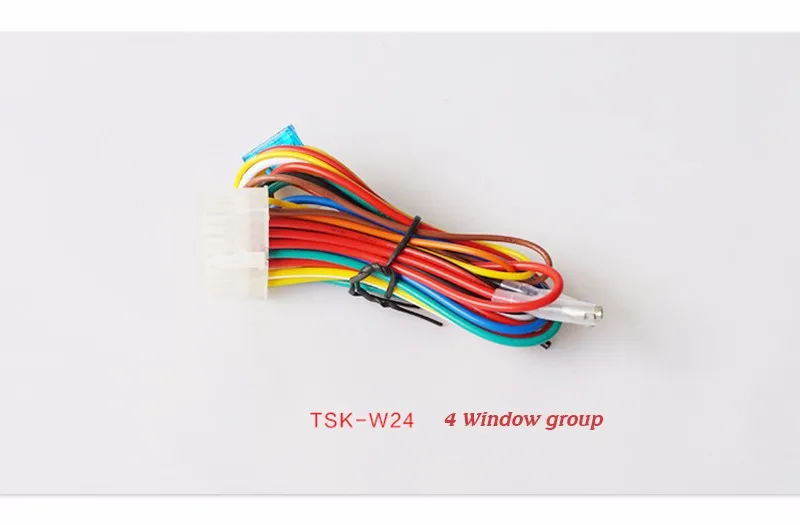

Host line group color Corresponding function:
1, brown (then the original ACC) 1B yellow (then anti-theft device / central locking window of negative l)
2, red and black (electric positive and negative trigger selection line) 2B orange (then anti-theft device / central locking is l line)
3, red (selected positive trigger line) 3B black (selected negative trigger line)
4, red (positive power supply) 4B black (negative power supply)
5, green (then A motor) 5B blue (then A motor)
6, red and black (B motor) 6B red (then B motor)
7, yellow and white (C motor) 7B white (C motor)
8, yellow-green (then D motor) 8B yellow (then D motor)


21328_018_025_015_024_014_02


Packaging Details
  • Unit Type: piece
  • Package Weight: 0.3kg (0.66lb.)
  • Package Size: 15cm x 10cm x 10cm (5.91in x 3.94in x 3.94in)
