Report item
Item specifics
  • Item Length: 18
  • Electronic: No
  • Software Version: official online version
  • Item Weight: 1
  • Item Height: 6
  • Voltage: 12
  • Power: 9
  • Material Type: plastic
  • Brand Name: AUCHONG
  • Model Name: VDM
  • Hardware Version: Newest
  • Item Width: 13
  • Item Type: Battery Testers
  • Special Features: wire
  • Item Type: Code Readers & Scan Tools
  • VDM: WIFI available
  • Update: by official website update online free
  • Warranty: 3 years
  • Technical support: available and effient
  • Shipping: DHL/UPS/FedEx/EMS/TNT,...
  • Delivery detail: within 1 working days
  • Delivery: fast and safe
  • Material Type: high quality
Product Description

Jasmine









1. Software Version: 3.84


2. Languages:


Persian, Dutch, Portuguese, Japanese, Thai, Indonesian, Czech, Hungarian, Chinese traditional, Chinese



simplified, Arabic, Russian, Finnish, Korean, Turkish, German, French, Spanish, Italian, polish, English,



Vietnamese



you need which language ,please leave message in order ,one scanner support one language.thank





vdm language 001

(Besides English,you can have another two languages at most, If you want to add language for your VDM UCANDAS,


please provide the serianl number and the language you need)


4. Updating: you can go to " ucandas.com



to update your device. After one year, you need pay about 80USD for each update.


5. VDM UCANDAS Operate system: Windows XP, Windows 7, Windows 8. No WP8/Win8 RT


6.Offer H-onda Adapter for free.


Software function description:

Issue Date: 2014-05-29


1. Optimized the installation process, add optiones for license agreement/Start menu folder

/desktop icon/autorun, support the drivers installation covering,

support the delete of history data.

2. Optimized the MCU program.

3. Optimized the Update program for diagnostic data list on Chinese Traditional.


Note:

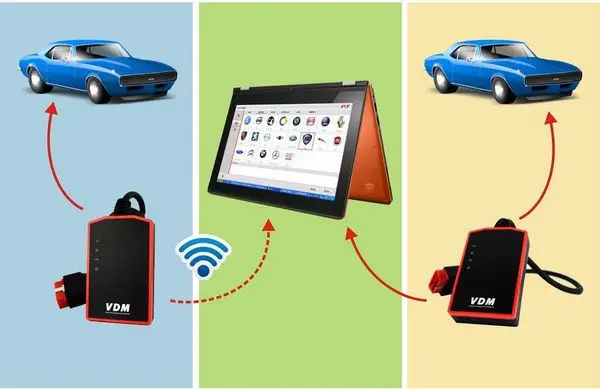

1. WIFI and USB Connection: The WIFI direct distance is less than 50M.


2. VDM UCANDAS can support new computer system: Windows XP, Windows 7, Windows 8.(No support for



Win8RT)


3. VDM UCANDAS works better than Autocom CDP.


4. Software No need Activation or Register


5, If you use the software with WIn XP2, it can\\\'t support WIFI.


UCANDAS VDM Introduction

The state-of-art UCANDAS is delicately engineered and built by P&T Electronic Technology Co., a scan tool R&D

company based in China. Established in 2009, P&T is now recognized by the automotive aftermarket industry as

one of the fastest growing scan tool companies providing the most extensive and best price-performance ratio

OEM-level diagnostic products and first-class customer support in the world. The UCANDAS Diagnostic System is

ingeniously designed to recreate the functionality of the OEM tools used by automotive manufacturers’ dealers,

empowering independent garage shops to provide complete servicing in their own shops, including data

stream, reading and clearing of diagnostic trouble codes, component activation and immobilizer key coding, etc.

100-Original-OBDII-Vehicle-Diagnostic-Moudle-UCANDAS-VDM-Wireless-Automotive-Diagnosis-System-Universal-Car-Diagnostic-Tool (3).jpg

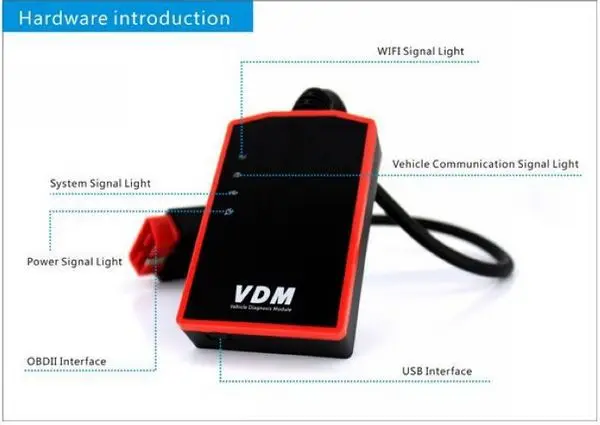

Hardware Introduction:



VDM UCANDAS Features

Supporting ISO 9141-2, K/L line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, ISO15765-4 protocols.

High-speed, medium speed and low speed CAN-BUS, Single CAN-BUS diagnosis protocols is supported.

Can check out the year and model of the vehicles automatically and quickly.

All inclusive software coverage - European, American, Asian and Australian prevalent vehicles.

OBDII diagnostic connector has a wide compatibility, which don’t need to replace other connector, during the

testing.

Hardware architecture uses new design with multiple protection, interference and stability. Built-in overvoltage

protection module is applied, in order to protect scanner and vehicle against accidental damage during

checking.

Can work stably in high and low temperature environment, and work well.

Specifications

MCU: ARM7 processor, 66MHz

Input Voltage: DC 8-18V

Communication Mode: USB and WIFI

Storage Temperature: -30 to 120 C(-22 to 248 F), Relative Humidity: <90%

Operating Temperature: -30 to 120 C(-22 to 248 F), Relative Humidity: <90%






VDM UCANDAS Package List:

1pc x VDM Main unit with OBDII Cable

1pc x USB Cable

1pc x CD Software

12

3






Packaging Details
  • Unit Type: piece
  • Package Weight: 0.6kg (1.32lb.)
  • Package Size: 18cm x 13cm x 6cm (7.09in x 5.12in x 2.36in)
